名称

<
>

半导电特多龙带

  • 人气:438
  • 简介
    半导电特多龙带<br>[产品说明]:由特多龙带经半导电胶浸渍烘干成型,纤维经过充分梳理,纵向强度高,电阻小。<br>[应用方式]:适合用于电缆导体和绝缘线芯外,起绑扎、隔离作用,也可用于电缆金属层下,起垫层、屏蔽作用。<br>一、主要技术指标…
标签:全部

内容

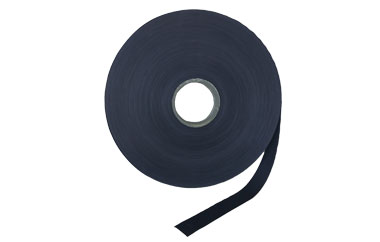

半导电特多龙带

Semi-conductive Tetolon tape

[产品说明]: 由特多龙带经半导电胶浸渍烘干成型,纤维经过充分梳理,纵向强度高,电阻小。

Product Description: Made of Tetolon tape, via semi-conductive adhesive impregnated dry and forming, fiber after fully carding, high longitudinal strength, low resistance.

[应用方式]: 适合用于电缆导体和绝缘线芯外,起绑扎、隔离作用,也可用于电缆金属层下,起垫层、屏蔽作用。

Application: Suitable for cable conductors and outer of insulation wire cores, lashing, isolation, can also be used for cables under the metal layer, cushion and shield.

一、主要技术指标:

Main specification:

产品规格

Specification (μm)

基重

Basis weight (g/m²)

拉伸强度

Tensile strength (N/cm)

伸长率

Elongation (%)

表面电阻

Surface resistance (Ω)

体积电阻

Volume resistance (Ω.cm)

瞬间稳定性

Short-term stability (℃)

长期稳定性

Long-term stability (℃)

180±30

150±10

150↑

20↑

1000↓

1*106↓

230

145

200±30

170±10

200↑

20↑

1000↓

1*106↓

230

145

250±30

180±105

250↑

20↑

1000↓

1*106↓

230

145

除以上规格外,其它可按客户特殊要求单独设计。

In addition to the above specifications, other special requirements can design according to customers

二、颜色:黑色。

Color: Black

三、电气特性:具有极高的强度,很好的屏蔽性,产品电阻小,具有半导电特性,易于各种电缆绕包和纵包加工。

Electrical characteristics: With good strength and good shielding, little resistance, with semi-conducting characteristics, used for wrapping of all kinds of power cables.

四、分切及包装:分切最小宽度为5mm,内孔大小为52mm或76mm;收卷最大外径为800mm,纸箱包装。

Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
