名称
半导电棉布带
- 人气：176
- 简介
半导电棉布带<br>[产品说明]:由棉布带经半导电胶浸渍烘干成型，纤维经过充分梳理，纵向强度高，电阻小。<br>[应用方式]:适合用于矿用电缆和其它电缆的绕包和屏蔽作用。<br>一、主要技术指标：
内容

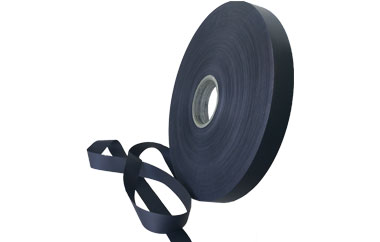

半导电棉布带
Semi-conductive cotton tape
[产品说明]: 由棉布带经半导电胶浸渍烘干成型，纤维经过充分梳理，纵向强度高，电阻小。
Product Description: Made of cotton tape, via semi-conductive adhesive impregnated dry and forming, fiber after fully carding, high longitudinal strength, low resistance.
[应用方式]: 适合用于矿用电缆和其它电缆的绕包和屏蔽作用。
Application: Suitable for wrapping and shielding of cables for mine and other cables.
一、主要技术指标：
Main specification:
|
产品规格 Specification (μm) |
基重 Basis weight (g/m²) |
拉伸强度 Tensile strength (N/cm) |
伸长率 Elongation (%) |
表面电阻 Surface resistance (Ω) |
体积电阻 Volume resistance (Ω.cm) |
瞬间稳定性 Short-term stability (℃) |
长期稳定性 Long-term stability (℃) |
|
100±30 |
90±10 |
100↑ |
20↑ |
1500↓ |
1*106↓ |
230 |
145 |
|
120±30 |
100±10 |
120↑ |
25↑ |
1500↓ |
1*106↓ |
230 |
145 |
|
140±30 |
110±105 |
140↑ |
25↑ |
1500↓ |
1*106↓ |
230 |
145 |
|
除以上规格外，其它可按客户特殊要求单独设计。 In addition to the above specifications, other special requirements can design according to customers |
|||||||
二、颜色：黑色。
Color: Black
三、电气特性：产品电阻小，具有半导电特性，易于各种电缆绕包和纵包加工。
Electrical characteristics: Little resistance, with semi-conducting characteristics, used for wrapping of all kinds of power cables.
四、分切及包装：分切最小宽度为5mm，内孔大小为52mm或76mm；收卷最大外径为800mm，纸箱包装。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
