名称
铝箔麦拉胶带
- 人气：119
- 简介
铝箔麦拉胶带<br>[产品说明]:以高纯度的铝箔为基材，再覆以pet聚酯带及环保型导电胶或者不导电胶制作而成的铝箔麦拉胶带，具有极佳的静电消散性，不易皱折，不易撕裂、耐热、稳定性好；一面导电，一面绝缘，可有效保护包覆的部位。<br>[应用方式]:…
内容

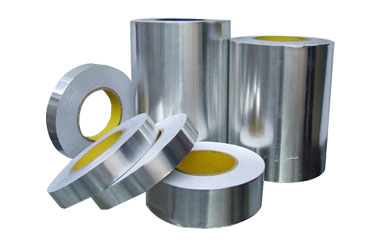

铝箔麦拉胶带
Aluminum polyester foil tape
[产品说明]: 以高纯度的铝箔为基材，再覆以PET聚酯带及环保型导电胶或者不导电胶制作而成的铝箔麦拉胶带，具有极佳的静电消散性，不易皱折，不易撕裂、耐热、稳定性好；一面导电，一面绝缘，可有效保护包覆的部位。
Product Description: Aluminum polyester foil tape mainly made of high purity aluminum foil, cover with PET tape and environmentally conductive adhesive or non conductive adhesive, which has excellent franklinism dissipation, not easy to fold, not easy to tearing, heat-resistant, stability, one side conductive, one side insulation, it can protect the wrapping part.
[应用方式]: 主要用于电脑显示器，电脑周边线材与变压器制造，中央空调管线，抽烟机，冰箱，热水器等的管线接缝，电线、电缆、精密电子产品、电脑设备等；高频传输时，隔离电磁波干扰，耐高温防止自燃。
Application: Mainly apply to CRT, computer line and transformer manufacture, pipe connect of central Air - Conditioning pipe, smoke sucker, fridge, water heater, wire, cable, precise electronic product and computer facility, when it transfer with high frequency, isolate interference of electromagnetic wave, high temperature resistance and avoid auto-ignition.
一、 主要技术指标：
Main specifications:
<td style="padding: 0px; valign="center">
65μm
|
产品规格 Specification |
组成 Composition |
伸长率 Elongation （%） |
抗张强度 Tensile strength （kgf/m²） |
基重 Basis weight （g/m²） |
电阻 Resistance (Ωμ.mm) |
||
|
铝厚 AL |
麦拉厚 PET |
压克力胶 Acrylic adhesive |
|||||
|
10μm |
12μm |
40±5μm |
35↑ |
0.22↑ |
66.15 |
2500↓ |
|
|
80μm |
25μm |
12μm |
40±5μm |
35↑ |
0.37↑ |
71.55 |
2500↓ |
|
103μm |
35μm |
25μm |
40±5μm |
35↑ |
0.40↑ |
79.65 |
2500↓ |
|
除以上规格外，其它可按客户特殊要求单独设计。 In addition to the above specifications, other special requirements can design according to customers |
|||||||
二、颜色：银色
Color: Silver
三、电气特性：具有保温，隔热,防水，粘力佳，耐寒性好，易撕，为消除电磁干扰(EMI),隔离电磁波对人体的危害，避免不需要之电压或电流而影响功能。
Electrical characteristics: Heat preservation, thermal insulation, waterproof, excellent adhesive, cold-resistant, easy to tear, to remove elimination of electromagnetic interference (EMI)，isolate electromagnetic wave to harm human, avoiding undesired voltage and current to effect the function.
四、分切及包装：分切最小宽度为5mm，内孔大小为52mm或76mm；收卷最大外径为800mm，纸箱包装。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
