名称

<
>

压花点子聚丙烯带(压花点子PP带)

  • 人气:134
  • 简介
    压花点子聚丙烯带(压花点子pp带)<br>[产品说明]:压花点子pp带是平纹pp带表面经过压花处理,增加了摩擦,在高速绕包时不易打滑脱落。具有良好的拉伸强度,且材料较为坚固,不会被铠装电缆钢带损坏。<br>[应用方式]:主要用于铠装电缆,电力电缆、控…
标签:全部

内容

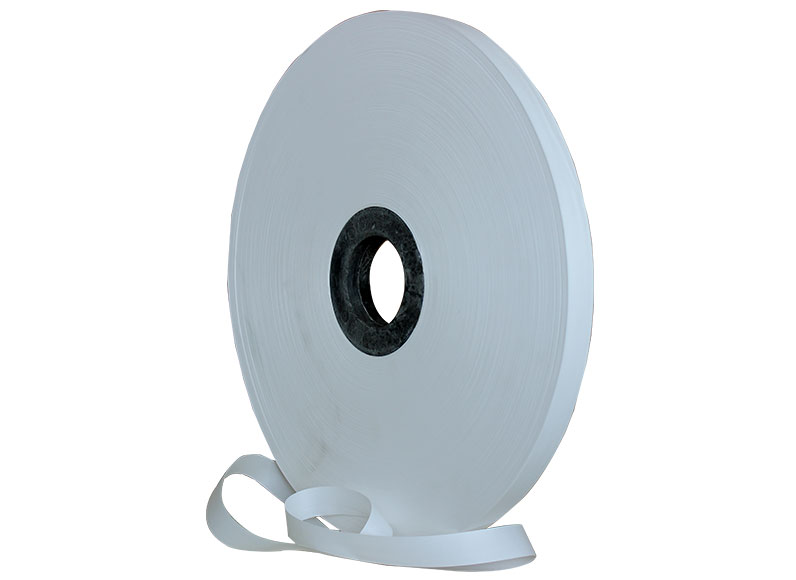

压花点子聚丙烯带(压花点子PP带)

Dot embossed PP tape

[产品说明]:  压花点子PP带是平纹PP带表面经过压花处理,增加了摩擦,在高速绕包时不易打滑脱落。具有良好的拉伸强度,且材料较为坚固,不会被铠装电缆钢带损坏。

Product Description: Dot embossed PP tape is Plain PP tape surface by embossing treatment, increased friction, in high-speed winding, it is not easy to slip off. It has good tensile strength, and the material is stronger and will not be damaged by armored cable and steel band.

[应用方式]:  主要用于铠装电缆,电力电缆、控制电缆、交联电缆等。

Application: Mainly used for armored cables, power cables, control cables, XLPE cables and so on.

一、主要技术指标:

Main specification:

产品规格

Specification

(mm)

基重

Basis   weight

(g/m2)

拉伸强度

Tensile   strength

(Mpa)

断裂伸长率

Elongation   atbreak

(%)

0.20±0.04

175±20

≥150

≥10

0.30±0.05

330±30

≥300

≥10

0.40±0.06

650±40

≥600

≥10

除以上规格外,其它可按客户特殊要求单独设计。

In   addition to the above specifications, other special requirements can design according   to customers



二、颜色:白色。

Color: White



三、电气特性:产品比重轻,厚度薄,拉伸强度大,适中的伸长率,防滑,防潮,不吸水,电性能良好,有一定的阻燃性,单盘绕线长,剥离性,耐热性能良好等,且绕线紧密圆整。

Electrical characteristics: The product light weight, thin thickness, tensile strength, moderate elongation, skid proof, moisture-proof, non absorbent, good electrical properties, flame retardant properties, single coil length, stripping resistance, good heat resistance, and wound tightly round.



四、分切及包装:分切最小宽度为5mm,内孔大小为52mm或76mm;收卷最大外径为800mm,纸箱包装。

Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
